Once Upon A Time ...
Via Enrico Fermi 7, Settimo Milanese
Headquarters of Autodelta, S.p.A.
All stories must inevitably begin somewhere and this one opens with a view of the rural countryside chosen by Alfa Romeo S.p.A. for it’s walled compound located in what was at the time a farming community in Settimo Milanese in 1965...a nearby suburb of Milano.
As many as about 200 people at the high point of Autodelta fortunes earned their livelihood engineering, fabricating, assembling, overhauling, testing and modifying engines, transmissions, chassis components for T-33 series, GTA and GTA Juniors, rally GTVs, Alfasud and Alfetta vehicles and Formula One cars in the 1970's and 1980's.
You'll observe Directore Generale Ingegnere Carlo Chiti's office windows on the left and the three white exhaust stacks emanating from his dynamometers just above the walled section. Just out of sight are two iron gates where all incoming and outgoing personnel and materiel would pass inspection, carefully screened by security guards who restricted passage to anyone carrying any type of photographic equipment.
The photographs you are about to see are the only images known to privately or publically exist of the inside of Autodelta taken since 1967 ....not even the factory or the Alfa Romeo Museo Storico has any period images inside the high walls of the Autodelta factory.
.
My completely unfettered open access to photograph was a personal courtesy extended to me by Ing. Chiti for my service to Autodelta.
.
Feel free to leave your own comments or stories of your personal feelings about the site as presented.
Are you excited? Lets begin.

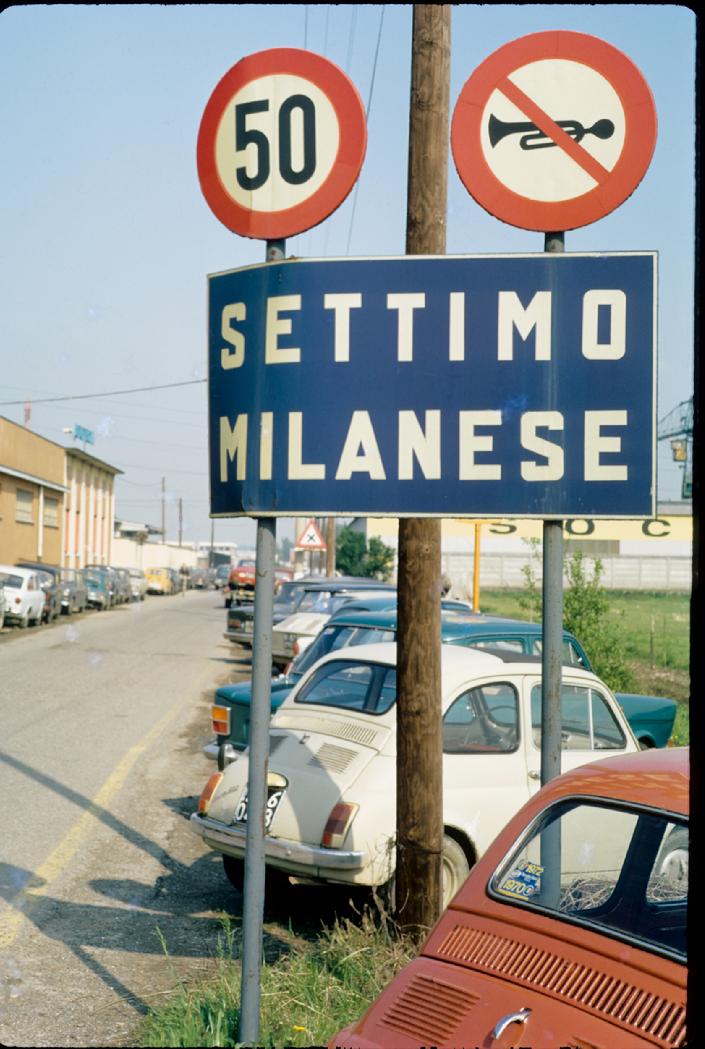

The agrarian surroundings of Settimo Milanese as taken from the neighboring village of Baggio in April 1972.
Via Enrico Fermi served as a busy passageway for local farmers tending their flocks while passing the employee parking lot of Autodelta in the 1960s and 1970s.
The formal address of the top secret Autodelta factory was # 7 .
Years of political struggle in Italy between the Communist Party, Socialists, Democratic Libertarians and the strong labor union movement caused labor strife throughout the country but did not seem to affect the production of Autodelta and it's relatively highly-paid workers...who would see freshly painted political slogans and 'manifesti' on the outer walls.
The Autodelta compound is shown to the right side of the small tubular fabrication shop "Aletti" visible on the extreme left.
Observe the three white dynomometer exhaust stacks near the center of the photograph and Ing. Chiti's office windows on the extreme left side.
The Main Hall
Notice the Le Mans tail section on #33 behind the new 116.00 series Alfetta Berlina.
Once inside the visitor appreciates the spacious aircraft hanger construction and the variety of chassis and construction years of the various cars. Some are set aside in subassemblies for eventual reconstruction / restoration and sale to museums, racing teams and wealthy patrons of the marque....a practiced industry method over the decades used to recover costs.
You will notice the first Alfetta chassis elaborated by Autodelta and an early aerodynamic 1972 LeMans test design car #33 parked directly behind it. T-33's from 1970 are stored on the lifts, including a 4 litre car that slinked around relatively unnoticed at various American circuits in the early 1970s. Later images to follow will show the ultimate development of those highly finned tail sections necessary for high speed stability on the Mulsanne straight at Le Mans.
Behind and to the right side of the image is the tool and spare parts shop.
The 1968 "Daytona" 2 litre is shown in the foreground undergoing restoration for the eventual sale abroad.
My temporary accommodations in the Infirmaria is shown at the extreme rear left of the scene with the employee cafeteria visible in the rear center. Each workday morning at noon a Colli wagen from Arese would drive in with a mouthwatering selection of fresh hot and cold food made in the central cucina there.
Beverages, breads and desserts were also available for the payment of a mensa coin...purchased at some point by each employee. I benefited from the generosity of the domestic staff who saved meals for my dinner and weekend meals.
Production Vehicles Area
The 'birthplace' of the Autodelta GTA series. Right here on this spot. In the right side over the partition is the cylinder head machining area.
The attentive observer will notice a few interesting GTA parts in the background....such as a 110 litre fuel tank... ;>)
The first elaborated Autodelta Montreal V-8 Spica Injected.
The GTA and GTA Jr. fabrication area was relatively small area with a single lift, a walk-down undercarriage workspace and one flat parking stall...occupied by what you may notice to be the ill-fated Bobcor Montreal being elaborated here for the first time.
The chassis on the right has been completely stripped of all subassembies by Autodeltisti working in another area of the building normally reserved for Group 2 road and rally car repair and fabrication prior to the "body in white" being wheeled into the Main Hall.
.
You will tour that area in my Part Three to follow.
Constructing the World Famous 33TT12
The 33TT12 chassis in 1972...in it's basic form...was fabricated by independent tube-welding and sheet metal fabricator "Aletti" at its factory next door to Autodelta. Sharing a common wall with Autodelta, when a tubular frame was completed several men would merely peal away a large flap on the wall just out of sight on the left and carry the frame to this assembly point where it would stay for a month or more while fiberglass, electrical, hydraulic passages and other components would be installed.
.
The chassis would be moved once again to the main hall for final assembly of the engine/transmission and suspension.
.
The paint bake oven is visible in the background and to the far right a fiberglass tail section drying in its mold is in partial view.
.
These chassis' were to be the very first twelve cylinder cars produced by Autodelta.
.
The first series of T33 vehicles designed in-house at Portello by Ing. Satta and Ing. Busso in 1965 had employed an unusual "H" shaped tubular thick sheet metal frame designed to house a rubber bladder for the equal weight distribution of fuel. That initial vehicle sported a four cylinder GTZ engine soon to be replaced by a new Autodelta two liter V-8 that won its initial public test at the Fleron Belgian hill climb on March 12, 1967 in the capable hands of test-driver Teodoro Zeccoli.
.
By the end of the 1968 season Autodelta had built a total of 28 T33/3 cars, allowing for the homologation of the car as a Group 4 Sports car for the 1969 season...according to M.L. Twite in his book "The World's Racing Cars", 1970.
.
The tubular "H" frame evolved from that point forward to the design shown above.
Mr. Podavita Venanzio
Mr. Parisi, senior metalworker

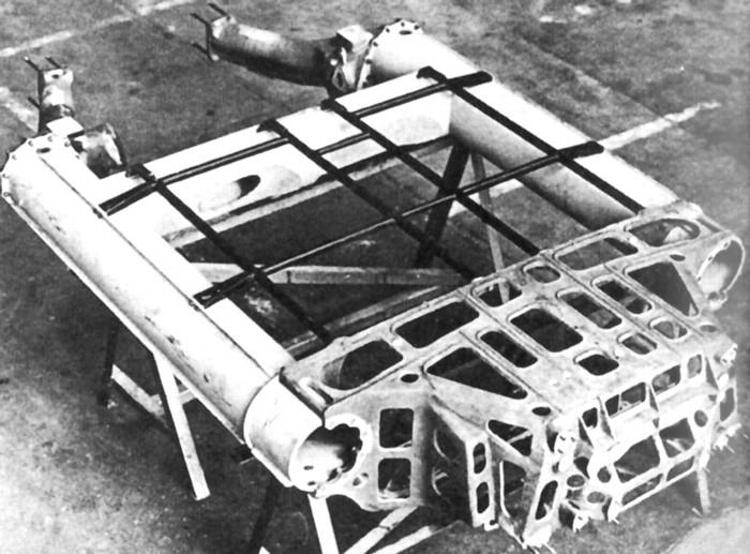

Chassis of the Stradale and the first T-33 two liter prototype car of 1967.
Courtesy of Centro Documentazione Alfa Romeo, Arese
Fuel was stored in an "H" - shaped rubber bladder packaged inside this chassis design. Using this unique design, fuel weight remains balanced and equalized around the perimeter of the chassis at all fuel levels.
This is the end of Part One of the historical series "Autodelta Golden Years".
